Your first month of silversmithing
Silversmithing has a steeper learning curve than most maker crafts — but it rewards patience quickly. Here's what the first month actually looks like, from torch-lit to finished piece.
By The JustBeginning Editors · Published May 24, 2026
The first month of silversmithing is humbling in a good way. You’re learning to work with fire, acid, and precious metal simultaneously — and somehow it all comes together. The skills are real, the tools are specific, and the finished object at the end of week two is genuinely yours.
This is what that first month looks like, honestly, without the YouTube polish.
Week 1: Setup and first solder
Before you make anything, you need a place to make it. Silversmithing requires three distinct zones: a soldering station (fireproof surface, good ventilation, your torch), a pickle station (slow cooker + Sparex solution), and a bench for sawing, filing, and forming. In a small space these can all be on the same table — but they need to be separate setups. Hot silver going into a shared workspace causes problems.

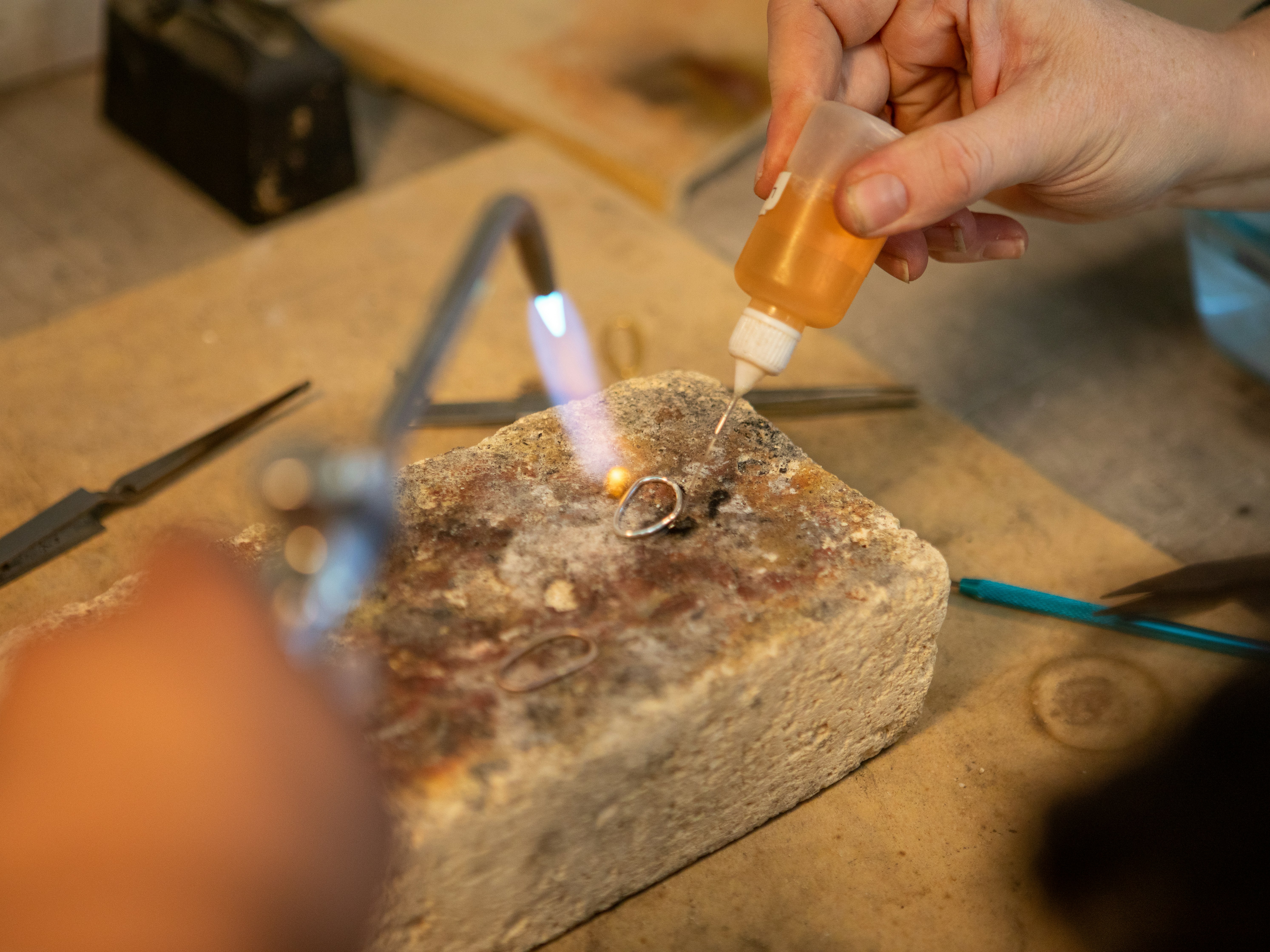

Your soldering surface matters. A charcoal block or a magnesia soldering board is the right surface — both reflect heat back at your work, which helps bring the metal to temperature faster and more evenly. A ceramic tile works in a pinch. Nothing flammable.
The pickle pot is not optional. Every piece of silver you solder goes into the pickle immediately after — it strips the black oxidation and white flux residue and brings the metal back to clean silver. Set up the Crock-Pot and dissolve Sparex in water (always add granules to water, not water to granules) before you ever light the torch. You’ll want it ready within minutes of your first solder.
Your first exercise should be simple: a butt-joined ring. Cut a strip of silver, file the ends flat, bend it into a ring shape, solder the join, pickle it, and sand it smooth. No stones. No complex forms. Just a closed ring with one clean solder seam.
What you’re learning in that exercise: how to flux a join, how to position solder chips, how to read the heat (silver ready to flow solder looks like it’s about to move — a subtle ripple in the surface), how to quench and pickle, how to file without rocking. That’s the entire beginner workflow in one object.
Week 2: The saw and the file
Once you can make a clean solder join, you can make almost anything. Week two is about learning to cut shapes out of sheet metal and refine them.
The jeweler’s saw is the skill that rewards patience most directly. Blade tension and posture are everything: frame clamped between chest and bench pin, blade perpendicular to the metal, arm moving from the shoulder — not the wrist. You want the blade to do the work, not you. Most beginners grip too tight and snap blades within the first ten minutes. Loose grip, let the saw drop by gravity, guide it don’t push it.
Blade size to gauge: a rough starting rule is 2/0 blades for 18-20g sheet, 4/0 for 22-24g sheet. Finer blade = slower cut but cleaner edge on thin metal.
The file is the most underrated tool in the shop. A half-round file handles both flat surfaces and concave curves. Most beginner silversmiths don’t file enough — they think the piece is close enough and skip straight to sandpaper. Take the extra five minutes with the file. It’s faster than sanding away a lumpy edge.
Sandpaper progression: 220 → 320 → 400 → 600 grit. Each step removes the scratches from the previous step. Don’t skip grits — you’ll just move the scratches around. After 600, a polishing cloth brings up the shine immediately.
Your project for week two: a hammered disc pendant. Saw a circle (or close to it) from 22g sheet, drill a small hole near the edge for the bail, texture the surface with a chasing hammer, sand and polish. That’s five distinct skills in one object.
Week 3: Temperature and troubleshooting
By week three you’ll have a solder join that didn’t flow, or flowed somewhere it shouldn’t have, or left a gray-white bloom on the silver that doesn’t pickle away. These are normal problems, and each one teaches you something.
Solder that won’t flow almost always means the heat is in the wrong place. You’re heating the solder instead of the metal. The solder flows toward heat — if the metal is hot, the solder chip will chase it. Heat the metal at least an inch away from the join, then slowly draw the heat toward the join. Watch the flux: it bubbles, then dries, then flows glassy. That’s when you bring the heat to the join.
Firescale is the dark purple-gray discoloration in sterling silver that appears after heating. It’s not surface oxidation — it’s a deep layer of cupric oxide that forms inside the metal. It doesn’t always pickle away. To remove it, you either sand deep enough to get below it (tedious on large pieces) or use a depletion gilding technique: heat the silver to just below solder temperature, pickle, repeat four or five times. This depletes the copper at the surface and leaves a thin fine-silver skin that doesn’t firescale.
This is why many instructors start beginners on fine silver: no copper, no firescale.
Solder that flows in the wrong direction means you heated the wrong area. Solder flows toward heat — always. Once you understand this it’s a precision tool, not a mystery.
Week 4: Your first real piece
By week four you have enough skill to set yourself a project that requires planning: a simple ring with a bezel-set stone, a pendant with a stamped texture, or a pair of earrings with wire details. Something that requires more than one solder join.
Multi-join pieces use the three-grade solder system: hard solder for the first join (highest melting point, won’t re-melt when you add the next one), medium for the second, easy for the final join. This is the system that makes complex fabrication possible — each subsequent join fires at a lower temperature than the one before, so the finished ones stay put.
Label your solder. The chips look identical.
What goes wrong (and what it means)
Every new silversmith hits the same handful of problems. None of them are signs you’re bad at this:
- White crust on silver after soldering — unfused flux. It pickles away. Normal.
- Solder balled up instead of flowing — metal wasn’t hot enough when solder was added. Heat the metal first, then bring the torch to the join.
- Ring cracked when you tried to close the join — work-hardened metal. Anneal it first: heat to dull red (barely visible in a dim room), quench, pickle, try again.
- Silver turned completely black — overheated or held at temperature too long. Pickle it; if the blackening doesn’t come off, that’s firescale (see above).
- Saw blade keeps snapping — tension is off, or you’re forcing the blade around a tight curve. Slow down. Let the blade lead. Drill relief holes at tight corners before attempting to saw them.
What to do at month two
Once you’ve made a few complete pieces, the skill gaps become obvious. The things that will accelerate improvement most directly:
- Work with others. A monthly open studio or a class with shared critique time is worth more than solo practice time.
- Study a finished piece you admire. Really look at how the forms were made, where the joins are, how the texture was achieved. Reverse-engineering good work is one of the best ways to learn.
- Learn to anneal deliberately. Most beginners only anneal when metal is already too hard to work. Learn to anneal preventatively — before a forming operation, not when the metal fights back.
- Try a project above your level. A bezel-set stone or a piece with a hinge will force you to learn something you’d otherwise put off.
Ready to get started? See our silversmithing gear guide for the exact torch, tools, and materials to buy for your first setup.
